| BRAND | Vega |

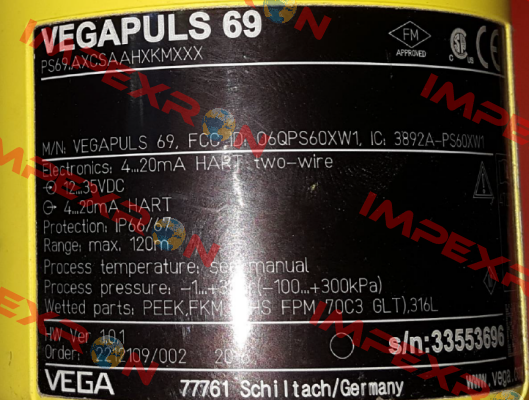

| Product | PS69.AXCSAAHXKMXXX |
| Internal code | ONR3382140 |
| Weight | 4.853 |
| Custom code | 90318080 |
| Technical specification | eID: DE54885029 Radar sensor for continuous level measurement of bulk materials The VEGAPULS 69 is a sensor for continuous measurement of bulk materials under a wide range of process conditions. It is ideal for level measurement in very high silos, large bunkers and segmented containers. The very good signal bundling makes it easy to set up and reliable measurement guaranteed. With an encapsulated plastic antenna, the VEGAPULS 69 can or be equipped with a lens antenna integrated in the metal flange. This enables the optimal Adaptation to various areas of application. Your benefit - Maintenance-free operation thanks to contactless measurement method - High system availability as it is wear-free and maintenance-free - Reliable measurement independent of steam, dust and noise Scope A: Europe Approval X: for Ex-free areas Design/Material C: Metal-clad lens antenna with flushing connection/ PEEK Process connection/SA material: swivel bracket with flange DN100 PN16 form B, DIN/ 316/316L Seal/process temperature A: FKM (SHS FPM 70C3 GLT) and PEEK/-40... + 130°C Electronics H: two-wire 4... 20 mA/HART Additional electronics X: without Optional surge protection: without Housing/Protection class K: plastic single chamber/IP66/IP67 Cable entry/Connection M: M20x1.5/Cable connector PA black (ø5-9 mm), standard PLICSCOM X display/control module: without Additional equipment X: without Certificates X: No Max. measurement range: 120,000 m Operating manual: DE - German Number of operating instructions: 1 Min. process pressure in bar: -1,000 Max. process pressure in bar: 3.0 |
Where can I buy PS69.AXCSAAHXKMXXX by Vega in Macedonia?
You can purchase PS69.AXCSAAHXKMXXX by Vega from Onrion LLC. We serve customers across Macedonia, offering competitive prices and reliable service.
What is the price of the PS69.AXCSAAHXKMXXX?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Vega in Macedonia?
While we are not the official distributor or seller of Vega in Macedonia, we source our products from reliable channels and offer you original Vega equipment at competitive prices.
How can I access PS69.AXCSAAHXKMXXX catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for PS69.AXCSAAHXKMXXX on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for PS69.AXCSAAHXKMXXX?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
