Prices KP75-MB/2-M12K M16-RH - ATEX / P-87249/1 / 2140001071 HIMMEL Macedonia

BRAND	HIMMEL

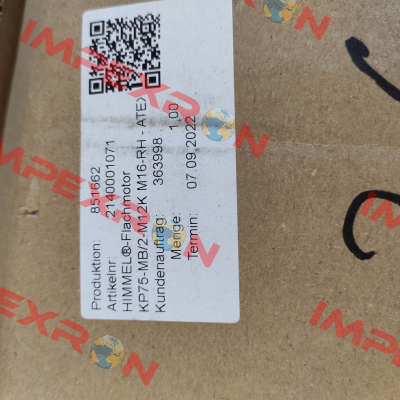

Product	KP75-MB/2-M12K M16-RH - ATEX / P-87249/1 / 2140001071
Description	flat motor
Internal code	ONR4520235
Weight	66
Technical specification	Maßblatt: 1NJ000299 K-Modellreihe / design series: K75 Typ / type: KP75-MB/2-M12K K-Maßblatt / dimension sheet: 1NJ000299 Farbe / colour: RAL 6011 Resedagruen 2K / Reseda green 2K-PUR Bauform / mounting position: B3 K-Befestigungsseiten / mounting sides: beidseitige Fußbearbeitung/double-sided foot machining Schutzart / protection class: IP64 K-Leistungsschild / name plate: Klebeschild 90x60 /adhesive label 90x60 Leistungsschild Logo / name plate logo: HIMMEL Flachmotor nach ATEX / flat-motors acc. to ATEX: II 3D Ex tc IIIB T300°C Dc - IP64 max. Antriebsdrehz./max. input speed [1/min;1/rpm]: 6000 max. Abtriebsmoment / max. output torque / Ma [Nm]: 19.8 max. Radialkraft / max. radial forces / Fr [N]: 1200 Umgebungstemperatur / Ambient temperature /Ta [°C]: -20/+40 Abtriebs-Variante / Output variant: Schnellspannsystem/quick change clampung system W.Durchmesser / shaft diameter [mm]: 30 W.Länge / shaft-length [mm]: 103 (mitte Fußbohrung bis Anfang Werkzeug/center foot hole to beginning of tool) Wellengewinde / shaft thread: M16-R.H. K-Flanschscheiben Ø/ external diameter flange [mm]: 140 K-Werkzeugbreite / tool width [mm]: 0 - 5 Werkzeugmitnahme / tool-lorry: 2 Stifte D=8 auf LK=60 Lagerung AS / Bearing-AS (DE): Doppellagerung [radial verstärkt] / Double bearing [radial reinforcement] Lagerung BS / Bearing-BS (NDE): Einfachlagerung / simple bearing K-elekt.Anschlussart/elec. connection mode: Klemmenkasten / Terminal Box KK-Werkstoff / Terminal box material: Aluminium / aluminium KK-Lage / Terminal box position: 1BK/3BK KK-Verschraubung / gland: (2x)-M25x1,5 + (1x)-M16x1,5 + (3x)-M12x1,5 Elektrische Ausführung / Elektrical design: CE Phasenanzahl / number of phases: 3~ Polzahl / Poles: 2 Nennleistung / Nominalpower [kW]: 6//8.5 Motordrehzahl nenn / Motor speed nom. [1/rpm]: 2900//5800 Nennfrequenz / Nominal frequency [Hz]: 50//100 Nennspannung / Nominalvoltage [V]: 220/380//380 Nennstrom / Nominal current In [A]: 22.00/13.00//18.50 CosPhi / CosPhi: 0.87//0.87 Schaltung / Wiring: S100//S102 (D/Y//D) Betriebsart / Duty type: S1 Versorungsart / power supply: FU-Betrieb / inverter duty Antriebsschutz / motor protection (IEC60034-25): durch Systemverantwortlichen zu gewährleisten / to be guaranteed by system manager Wicklungsschutz / Motor protector: PTC 130°C Isolationsklasse / Insulation class: F Schaltbild Motor / Connection diagram motor: A0100000 Schaltbild Einbauten 1 / Con. diagram compon. 1: A01TP000 Bremstyp / Brake type: M12K [12Nm] (L8) Bremssteuerspg / Brake supply voltage [V]: 360-440 Verschaltung / Connection: separat / separate Schaltbild Bremse 1 / Connection diagram brake 1: A01BA000

HIMMEL - KP75-MB/2-M12K M16-RH - ATEX / P-87249/1 / 2140001071 referenced flat motor product produced by high technology.
KP75-MB/2-M12K M16-RH - ATEX / P-87249/1 / 2140001071 became irreplaceable of foundations. KP75-MB/2-M12K M16-RH - ATEX / P-87249/1 / 2140001071 referenced product which is satisfy the customer's needs, offers advantages of quality and cost. Thanks to our large disturbiton network, we offer door delivery in most suitable conditions. Contact us if you are looking for alternative price of KP75-MB/2-M12K M16-RH - ATEX / P-87249/1 / 2140001071 .

Where can I buy KP75-MB/2-M12K M16-RH - ATEX / P-87249/1 / 2140001071 by HIMMEL in Macedonia?

You can purchase KP75-MB/2-M12K M16-RH - ATEX / P-87249/1 / 2140001071 by HIMMEL from Onrion LLC. We serve customers across Macedonia, offering competitive prices and reliable service.

What is the price of the KP75-MB/2-M12K M16-RH - ATEX / P-87249/1 / 2140001071?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of HIMMEL in Macedonia?

While we are not the official distributor or seller of HIMMEL in Macedonia, we source our products from reliable channels and offer you original HIMMEL equipment at competitive prices.

How can I access KP75-MB/2-M12K M16-RH - ATEX / P-87249/1 / 2140001071 catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for KP75-MB/2-M12K M16-RH - ATEX / P-87249/1 / 2140001071 on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for KP75-MB/2-M12K M16-RH - ATEX / P-87249/1 / 2140001071?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
